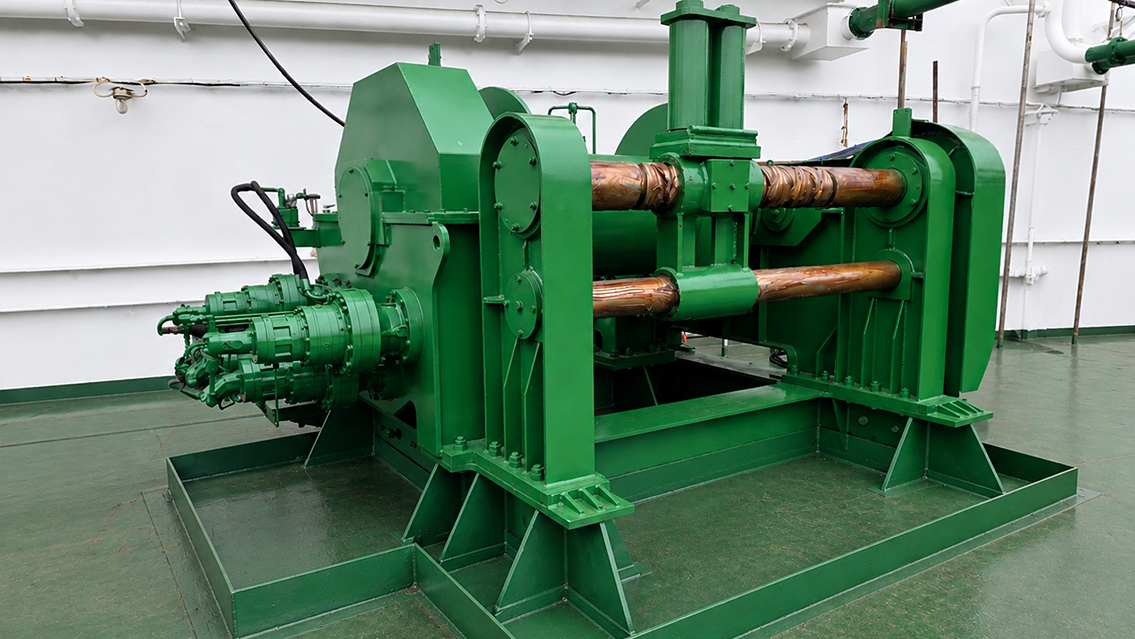

Ele’ mooring winch
(1Drum)
(1Drum)
닫기
Technical specification and weight
| Mooring winch Type |
Mooring winch Capacity (Ton) |
Wire Rope dia. (mm) |
Nominal Speed (m/min) |
Slack rope Speed (m/min) |
Warping end Capacity (Ton) |
Weight (kg) |
|---|---|---|---|---|---|---|
| EMW-12-1SD | 12 | 26 | 0 ~ 15 | 0 ~ 30 | 12 | 2600 |
| EMW-15-1SD | 15 | 30 | 15 | 3150 | ||
| EMW-20-1SD | 20 | 34 | 20 | 3800 | ||
| EMW-25-1SD | 25 | 38 | 25 | 5250 | ||
| EMW-30-1SD | 30 | 44 | 30 | 6000 |
Demension
| Windlass Type | Dimension (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |
| EMW-12-1SD | 2420 | 700 | 1100 | 900 | 420 | 900 | 450 | 1200 | 600 |
| EMW-15-1SD | 3170 | 790 | 1140 | 960 | 480 | 960 | 500 | 1400 | 800 |
| EMW-20-1SD | 3210 | 810 | 1160 | 1100 | 550 | 1100 | 560 | 1400 | 800 |
| EMW-25-1SD | 3250 | 830 | 1180 | 1220 | 610 | 1220 | 630 | 1400 | 800 |
| EMW-30-1SD | 3290 | 850 | 1200 | 1420 | 710 | 1420 | 630 | 1400 | 800 |
Hydraulic brake type, clutch type are also available upon request.
