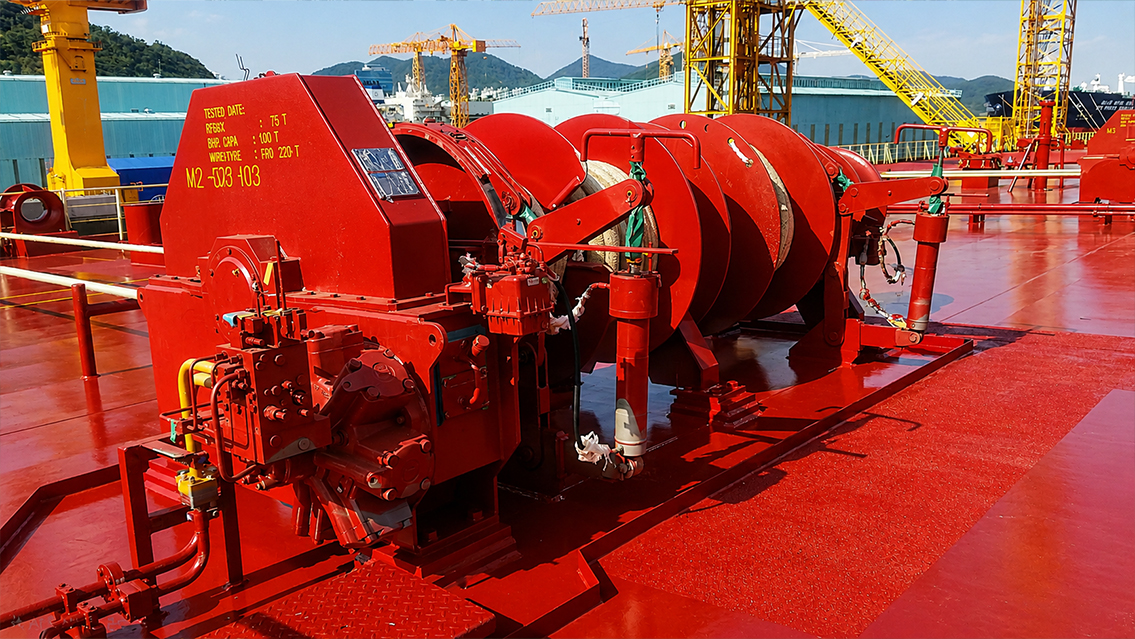

Hyd’ mooring winch
(1drum)
(1drum)
닫기
Technical specification and weight
| Mooring winch Type |
Mooring winch Capacity (Ton) |
Wire Rope dia. (mm) |
Nominal Speed (m/min) |
Slack rope Speed (m/min) |
Warping end Capacity (Ton) |
Weight (kg) |
|---|---|---|---|---|---|---|
| HMW-12-1SD | 12 | 26 | 0 ~ 15 | 0 ~ 30 | 12 | 2200 |
| HMW-15-1SD | 15 | 30 | 15 | 2750 | ||
| HMW-20-1SD | 20 | 34 | 20 | 3400 | ||
| HMW-25-1SD | 25 | 38 | 25 | 4850 | ||
| HMW-30-1SD | 30 | 44 | 30 | 5600 |
Demension
| Windlass Type | Dimension (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |
| HMW-12-1SD | 2570 | 845 | 1100 | 900 | 900 | 420 | 450 | 1200 | 600 |
| HMW-15-1SD | 3320 | 940 | 1140 | 960 | 960 | 480 | 500 | 1400 | 800 |
| HMW-20-1SD | 3360 | 960 | 1160 | 1100 | 1100 | 550 | 560 | 1400 | 800 |
| HMW-25-1SD | 3400 | 980 | 1180 | 1220 | 1220 | 610 | 630 | 1400 | 800 |
| HMW-30-1SD | 3400 | 1000 | 1200 | 1420 | 1420 | 710 | 630 | 1400 | 800 |
Hydraulic brake type, clutch type are also available upon request.
