ELEC' WINDLASS Welcome to MIRAE INDUSTRIES Co.,LTD Global marine equipment provider

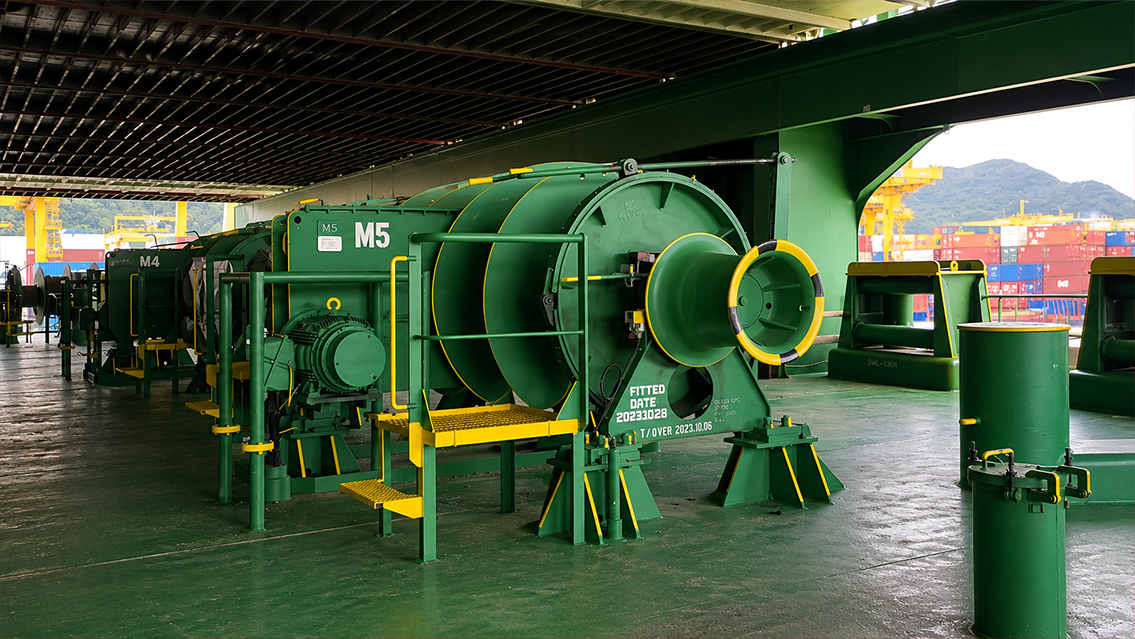

Elec’ windlass combined cable lifter unit and anchor mooring winch

닫기
Technical specification and weight
Windlass
Type		 Chaindia.
G3
(mm)		 Mooring winch
Capacity
(Ton)		 Rope
dia.
(mm)		 Nominal
Speed
(m/min)		 Slack rope
Speed
(m/min)		 Warping end
Capacity
(Ton)		 Weight
(kg)
ECU-58-G3 + EMW-12 58 12 26 0 ~ 15 0 ~ 30 12.5 6600
ECU-60-G3 + EMW-12 60 12 26 12.5 6600
ECU-62-G3 + EMW-12 62 12 26 12.5 7550
ECU-64-G3 + EMW-12 64 12 26 12.5 7550
ECU-66-G3 + EMW-12 66 12 26 12.5 7950
ECU-68-G3 + EMW-15 68 15 30 15 8450
ECU-70-G3 + EMW-15 70 15 30 15 8950
ECU-73-G3 + EMW-15 73 15 30 15 8950
ECU-76-G3 + EMW-15 76 15 30 15 9250
ECU-78-G3 + EMW-15 78 15 30 15 9250
ECU-81-G3 + EMW-15 81 15 30 15 9950
ECU-84-G3 + EMW-15 84 15 30 15 9950
ECU-87-G3 + EMW-20 87 20 34 20 11350
ECU-90-G3 + EMW-20 90 20 34 20 11350
ECU-92-G3 + EMW-20 92 20 34 20 14450
ECU-95-G3 + EMW-20 95 20 34 20 14450
ECU-97-G3 + EMW-20 97 20 34 20 15050
ECU-98-G3 + EMW-20 98 20 34 20 15050
ECU-100-G3 + EMW-25 100 25 34 25 15950
ECU-102-G3 + EMW-25 102 25 38 25 16750
ECU-105-G3 + EMW-25 105 25 38 25 16750
ECU-107-G3 + EMW-30 107 30 44 30 21750
ECU-108-G3 + EMW-30 108 30 44 30 21750
ECU-111-G3 + EMW-30 111 30 44 30 21750
ECU-114-G3 + EMW-30 114 30 44 30 28750
ECU-117-G3 + EMW-30 117 30 44 30 28750
Demension
Windlass Type Dimension (mm)
A B C D E F G H I
ECU-58-G3 + EMW-12 800 2100 3370 670 1420 900 420 450 450
ECU-60-G3 + EMW-12
ECU-62-G3 + EMW-12 800 2100 3430 670 1450 900 420 450 450
ECU-64-G3 + EMW-12
ECU-66-G3 + EMW-12 900 2300 3510 645 1490 960 420 450 450
ECU-68-G3 + EMW-15
ECU-70-G3 + EMW-15 900 2300 4100 645 2000 960 480 500 500
ECU-73-G3 + EMW-15
ECU-76-G3 + EMW-15 1000 2350 4150 715 2020 1140 960 480 500
ECU-78-G3 + EMW-15
ECU-81-G3 + EMW-15 1000 2350 4200 715 2070 1140 960 480 500
ECU-84-G3 + EMW-15
ECU-87-G3 + EMW-20 1000 2450 4425 685 2070 1160 1100 550 560
ECU-90-G3 + EMW-20
ECU-92-G3 + EMW-20 1000 2450 4425 635 2120 1160 1100 550 560
ECU-95-G3 + EMW-20
ECU-97-G3 + EMW-20 1100 2450 4970 745 2625 1160 1100 550 560
ECU-98-G3 + EMW-20
ECU-100-G3 + EMW-25
ECU-102-G3 + EMW-25 1100 2620 5210 745 2645 1180 1220 610 630
ECU-105-G3 + EMW-25
ECU-107-G3 + EMW-30 1200 2630 5310 865 2725 1200 1420 710 630
ECU-108-G3 + EMW-30
ECU-111-G3 + EMW-30
ECU-114-G3 + EMW-30 1200 2700 5420 1035 2805 1200 1420 710 630
ECU-117-G3 + EMW-30
